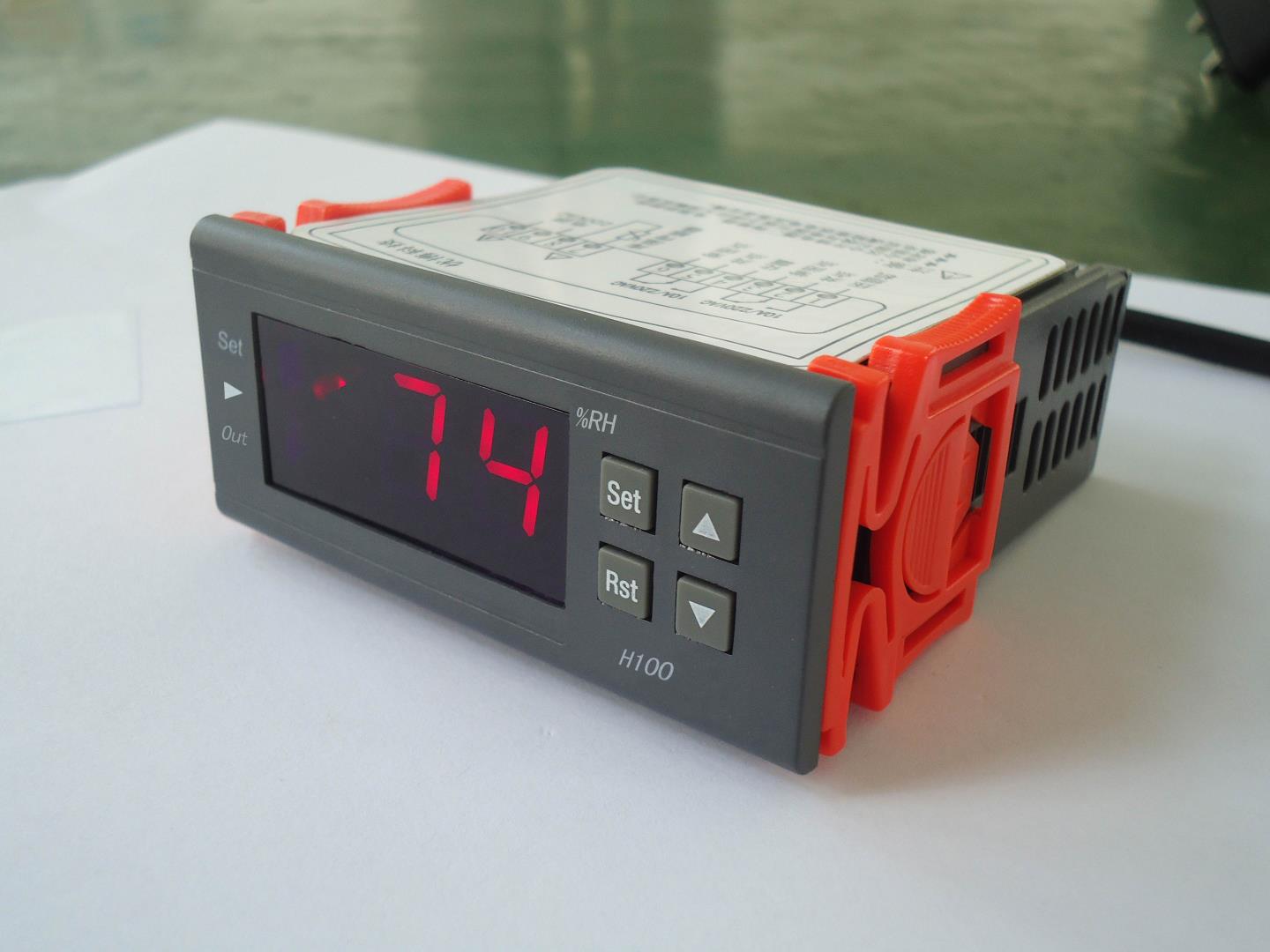

I. product overview
It is widely used in the humidity control of fresh cold storage, humidifier, dehumidifier, air humidity regulator, etc.
Ii. Product features
1. Humidification and dehumidification modes are optional
2. Adopt integrated circuit humidity sensor with high sensitivity, fast response speed and good consistency.
3. Keyboard lock function
4. After the humidity sensor failure, the controller periodically turns on or off the control output according to the set time.
Iii. Main functions
Humidification, dehumidification, single sensor, humidity correction
Technical parameters
Power-supply: 220VAC (1+10%-15%), 50/60hz
Power consumption: less than 3W;
Measurement range: 0%RH ~ 99%RH;
Control range: 10%RH ~ 99%RH;
Temperature resolution: 1%RH;
Temperature measuring accuracy: being is 2.5 ℃, plus or minus 5% RH + 0.5 (words) to 10 ~ 40 ℃, 0% RH to 59% RH + / - 6% RH + 0.5 (words), its more than plus or minus 8% RH + 0.5 (words),
Sensor annual drift: + / - 0.5% RH
Operating output: contact capacity is 220VAC, which can directly drive the load of single phase 0.5hp /220VAC and below;
Front panel protection grade: IP54;
Being is running environment temperature: 0 ℃ ~ 60 ℃;
Do the storage temperature: - 30 ℃ ~ 75 ℃;
Relative humidity: 20 ~ 85% RH (no condensation).
V. specifications and dimensions
Plate size: 75 by 34.5 (mm);
Size of mounting hole: 71 x 29 (mm);
Size: 75 x width 34.5 x depth 85 (mm)
Design：
