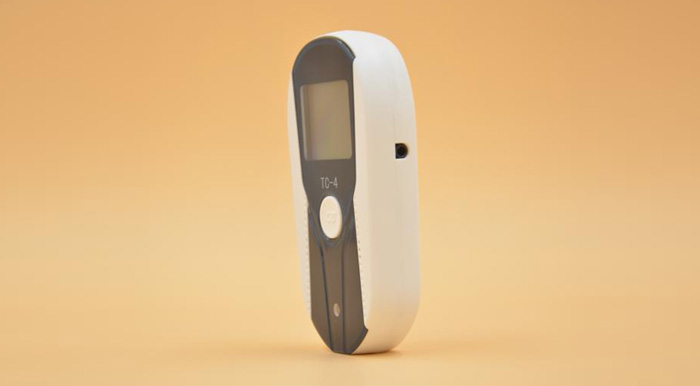

Product overview
The temperature recorder, tc-4, can be equipped with optional external sensor and automatically switched to external sensor. After the recorder is connected to the computer via USB, the upper computer software can directly upload data. In addition, the product can be equipped with buzzer. See the following technical parameters for details:
Temperature measurement range: being is built-in probe - 30 ℃ ~ + 60 ℃; External probe - 40 ℃ ~ + 85 ℃;
Measuring accuracy: being in - 30 ℃ ~ + 60 ℃ temperature measuring range, accuracy of + 1 ℃; The rest of the + 1.5 ℃;
Resolution: being is 0.1 ℃;
Recording capacity: 16000 group (MAX);
Recording interval: 10 seconds to 24 hours can be set continuously;
Interface: USB interface;

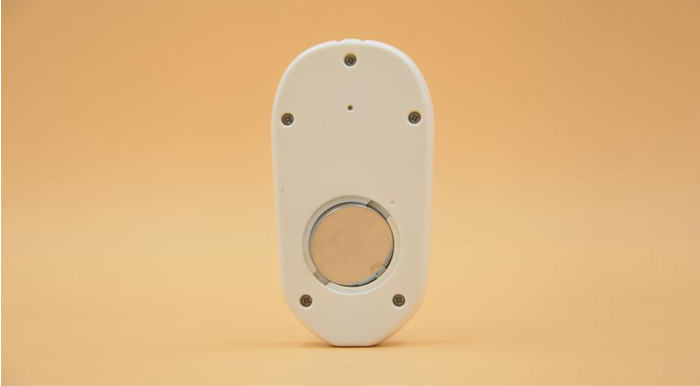

Power supply: built-in 3V dc CR2450 battery and USB interface power supply;
Battery life: being under 25 ℃ environment, to work 15 minutes interval, can use more than one year;
Sensor: built-in NTC thermistor;
Rocky LCD display, convenient for customers to see the data and recorder working status.

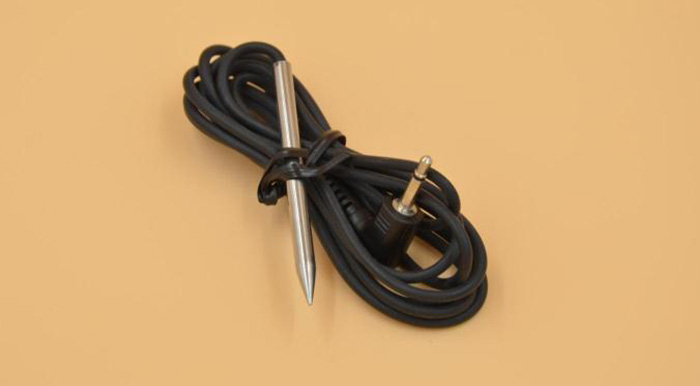

Optional external sensors, after connect automatically switch to the external probe, measuring range widening - 40 ℃ ~ + 85 ℃.
Connect to the computer via USB, the upper computer software will automatically read data, form a report, easy to view and print, easier to operate
When the computer is connected, the USB interface is powered, and when the battery is dead, the data can be uploaded.
Data is kept permanently; The data can be read, saved and printed by PC data management software.
To white shell, refined appearance, upper machine interface beautification, data read faster. When promotion, should key recommend to the customer: LCD display, can be external probe, automatic upload data, can edit serial number and other functions.
Design：
