I. product overview
It is widely used in all kinds of medium and low temperature cold storage, refrigerator and operation station which need refrigeration and frost management.
Ii. Product features
1. Double control of refrigeration, time and temperature;
2. Set user parameters and manager parameters respectively, and set upper and lower limits of parameter values;
3. Various defrost and fan management methods;
4. Frost drip time can be set
5. Proportional open and stop when the temperature sensor fails
Iii. Main functions

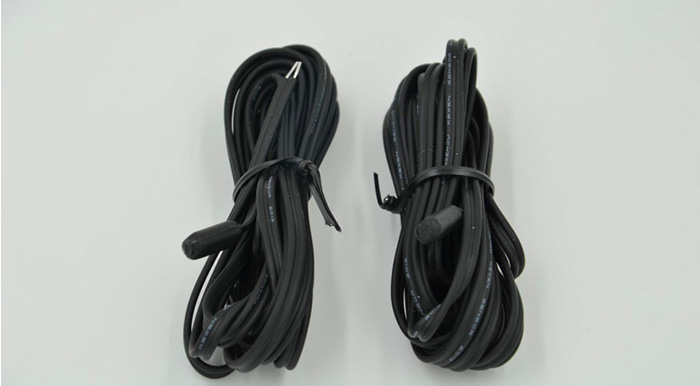

Refrigeration, fan operation mode optional, defrost, double sensor, temperature overrange and sensor fault alarm.
Technical parameters
Measuring range: being - 50 ℃ ~ 90 ℃
Do the temperature resolution: 0.1 ℃
Temperature measuring accuracy being: - 40 ℃ to 50 ℃ + / - 1 ℃, 50 ℃ ~ 70 ℃ plus or minus 2 ℃
Being is the largest range of temperature control: - 50 ℃ ~ 85 ℃
Supply voltage: 220 + / 10% (VAC)

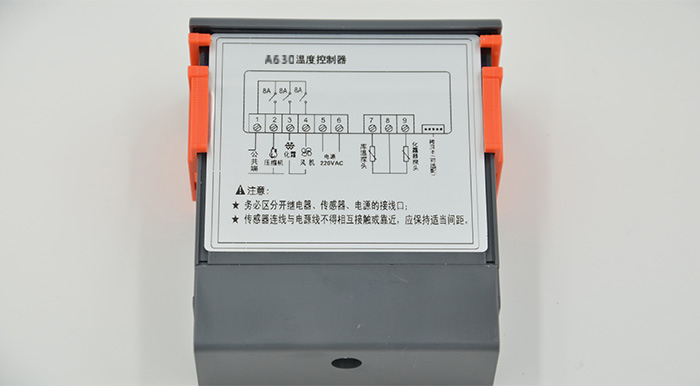

Compressor of relay output capacity: 10A/250VAC; Frost: 10 a / 250 vac. Fan: 10 a / 250 vac
Power consumption: 0.3w
A working environment temperature being: 0 ℃ ~ 55 ℃
Storage temperature: being is 25 ℃ ~ 75 ℃
Relative humidity: 20%~85% (no condensation)

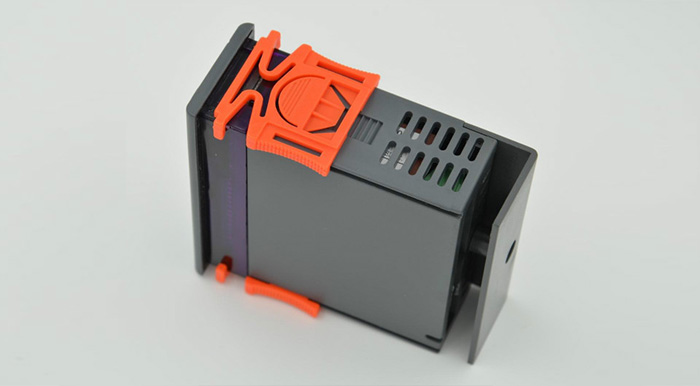

V. specifications and dimensions
Size: 75 x 34.5 x 85 (unit: mm)
Installation hole size: 71 x 29 (unit: mm)
Design：
