I. product overview
Applicable to all kinds of high temperature cold storage, straight cold refrigerator, cold water machine, seafood machine and some small refrigeration and heating equipment.
Ii. Product features
1. The functional modes of refrigeration, heating and alarm are optional
2. Temperature control by means of feedback
3. Set user parameters and manager parameters respectively
4. Upper and lower limits limit users to set temperature control parameters, which can avoid non-professional staff to operate heating, cooling, alarm, single sensor and temperature correction by mistake
Iii. Main functions
Refrigeration, heating, alarm, single sensor, temperature correction, temperature control according to temperature set value + return difference;
Technical parameters
Measuring range: being - 50 ℃ ~ 99 ℃;
Do the temperature resolution: 1 ℃;
Nurture temperature measuring accuracy: + / - 1 ℃;
Control: being - 50 ℃ ~ 70 ℃;
Power supply: 220VAC+10%/ -10%, 50/60hz;
Power consumption: less than 3W;
Output capacity of relay: refrigeration: 10A/250VAC, normally open output, which can directly drive the load of single-phase 300W/220VAC and below;
Front panel protection grade: IP65;
Being is running environment temperature: 0 ℃ ~ 55 ℃;
Storage temperature: being is 25 ℃ ~ 75 ℃;
Relative humidity: 20 ~ 85% (no condensation).

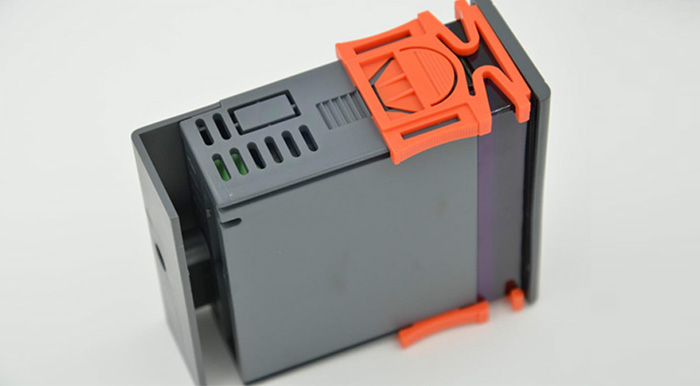

V. specifications and dimensions
Comr panel size: 77mm (width) x 34.5mm (height);
The size of mounting hole: 71mm (width) x 29mm (height);
Spring machine size: 77mm (width) * 34.5mm (height) * 65mm (depth)
